How Cast Iron Gates Work in Hydropower Stations

In hydropower stations, cast iron gates primarily fulfill core functions of water flow control, equipment protection, and operating condition adjustment. Their working principle centers on "structural sealing, hoisting drive, and water flow regulation," adapting to scenarios like water intake, flood discharge, and maintenance in hydropower facilities. Meanwhile, the pressure resistance and wear resistance of cast iron materials ensure stable operation under conditions of high water pressure and strong water flow. Below is a detailed breakdown from three key perspectives: core structure, main working scenarios, and critical mechanisms.

---

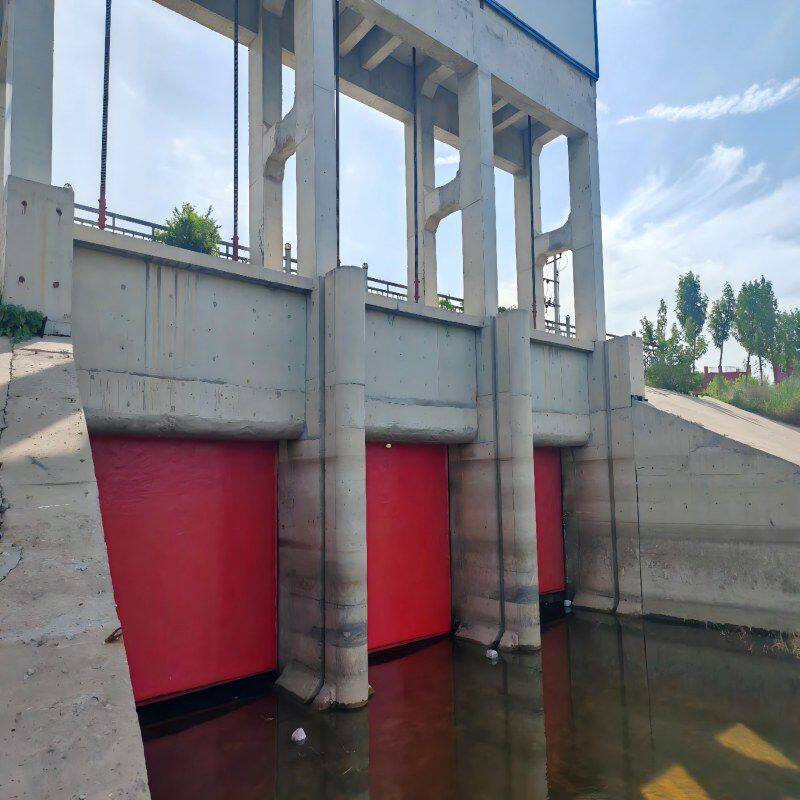

I. Core Structure of Cast Iron Gates (Operational Foundation)

1. Gate Slab: The primary water-retaining component, typically cast from gray cast iron or ductile iron (ductile iron offers higher toughness, making it suitable for turbulent water). Its surface is precision-machined to ensure tight alignment and sealing with the gate frame. For large-scale gates, a wear-resistant layer (e.g., stainless steel plate) is often added to the upstream face of the slab to extend its resistance to erosion.

2. Gate Frame: Fixed within the concrete gate chamber of the hydropower station’s intake, flood discharge channel, or draft tube, it forms a sealing interface with the gate slab. The inner edge of the frame is fitted with water-stop rubber gaskets (e.g., nitrile rubber). When the gate is closed, these gaskets compress and deform to prevent water seepage (seepage rate must be ≤ 0.1 L/s·m, meeting hydropower station sealing standards).

3. Hoisting Equipment: The power unit that drives the gate slab up and down. Hydropower stations commonly use "electric screw hoists" or "hydraulic hoists" (the latter for large-size, high-pressure gates). Mechanical transmission moves the gate slab along guide rails on the gate frame, enabling the gate to open or close.

4. Locking Device: Secures the gate slab in place when fully open or closed, preventing displacement caused by water impact. This is particularly critical during hydropower station maintenance to ensure worker safety.

   ---

II. Main Working Scenarios and Operational Mechanisms in Hydropower Stations

1. Intake Gates: Regulating Water Volume for Power Generation

• Start-up and Load Adjustment: When the station starts generating power, the hoisting equipment (e.g., electric screw hoist) lifts the gate slab incrementally. This controls the flow of water into the penstock, ensuring the turbine rotates at a stable speed (matching grid frequency requirements). If the grid demands higher power output, the gate is lifted further to increase water flow; if output needs to decrease, the gate is lowered to reduce flow.

• Shutdown Protection: In case of turbine failure or emergency shutdown, the hoisting system rapidly lowers the gate slab to block water intake, preventing damage to turbine components from excessive water pressure. The locking device then engages to keep the gate securely closed.

  ---

2. Flood Discharge Gates: Mitigating Flood Risks

• Flood Diversion: When the upstream water level exceeds the safe threshold (monitored by water level sensors), the control system activates the hoisting equipment to lift the gate slab. This opens the spillway, diverting surplus water downstream and preventing the dam from overtopping.

• Controlled Discharge: For moderate floods, the gate is partially lifted to regulate the discharge rate, avoiding sudden surges that could damage downstream riverbanks or communities. After the flood recedes, the gate is gradually lowered to restore normal water levels.

  ---

3. Maintenance Gates: Ensuring Safe Overhaul

• Isolation and Sealing: Before maintenance begins, the maintenance gate is fully closed, and its water-stop rubber gaskets form a tight seal to block water flow into the working area. Any residual water in the isolated section is pumped out, allowing workers to inspect or repair equipment (e.g., turbine blades, valve components).

• Post-Maintenance Reset: Once maintenance is complete, the gate is lifted slowly to reintroduce water into the system. The hoisting equipment adjusts the gate height incrementally to avoid sudden water hammer (pressure surges) that could damage pipelines.

  ---

III. Key Performance Advantages Supporting Hydropower Operations

• Pressure Resistance: Cast iron’s high compressive strength allows the gate to withstand water pressure of up to 0.5–1.0 MPa (typical for medium-to-large hydropower stations), avoiding deformation under load.

• Corrosion and Wear Resistance: Gray cast iron or ductile iron (often coated with anti-corrosion paint) resists rust from long-term water exposure. The optional wear-resistant layer on the gate slab also reduces damage from sediment-laden water.

• Reliable Sealing: The combination of precision-machined gate slabs and elastic water-stop gaskets minimizes seepage, ensuring efficient water control during power generation and preventing water waste.

  ---
