Advantages of Pneumatic Shield Gate (PSG)

Mr. Wendy December 20, 2025

Advantages of Pneumatic Shield Gate (PSG)

Pneumatic Shield Gate (PSG) has become a preferred water control solution in various hydraulic and water conservancy projects due to its unique structural design and excellent performance. Its core advantages are comprehensively reflected in functional flexibility, structural reliability, economic efficiency, and ecological compatibility, as detailed below:

1. Flexible and Efficient Water Level Control

PSG realizes rapid and precise adjustment of water levels through the inflation and deflation of rubber airbags. During normal operation, it can stably retain water to meet the needs of irrigation, water supply, and landscape; when facing floods or emergency water release, it can complete deflation in a short time (usually a few minutes to dozens of minutes), allowing the steel shield plate to drop quickly without obstructing flood discharge. This rapid response capability effectively avoids the risk of flood disasters that may be caused by slow operation of traditional sluice gates. In addition, the inflation pressure can be precisely adjusted according to actual water demand, achieving stepless regulation of water levels and adapting to variable water flow conditions.

2. Compact Structure and Strong Environmental Adaptability

Compared with traditional concrete dams or large sluice gates, PSG has a compact structure, requiring no massive concrete foundations or intermediate piers. This design not only reduces the occupation of river channel space but also minimizes the impact on the original river terrain. It is particularly suitable for narrow rivers, urban water systems, and valleys with complex terrain. Meanwhile, the rubber airbag and steel shield plate (with anti-corrosion coating) have excellent corrosion resistance and fatigue resistance, enabling PSG to adapt to various harsh working environments such as fresh water, seawater, and areas with large temperature differences. It can also tolerate small deformations of the foundation, avoiding structural damage caused by uneven settlement.

3. Low Maintenance Cost and Long Service Life

The core components of PSG (rubber airbag, steel shield plate, and control system) have mature manufacturing processes and high structural reliability. The rubber airbag is made of high-strength synthetic rubber (neoprene, EPDM) with fiber reinforcement, which has good wear resistance and aging resistance; the steel shield plate is treated with anti-corrosion coatings such as hot-dip galvanizing or epoxy resin, effectively resisting water erosion and sediment scouring. During daily operation, only regular inspections of the airtightness of the airbag, the integrity of the sealing strip, and the operation of the control system are required, with simple maintenance procedures and low labor and material costs. Under normal maintenance conditions, the service life of PSG can reach 20-30 years, which is comparable to or even exceeds that of traditional water control structures.

4. Economic Benefits and Convenient Construction

The construction of PSG does not require large-scale earth-rock excavation or concrete pouring, which significantly shortens the construction period (usually only 1-3 months for small and medium-sized projects). The prefabrication rate of components is high, and on-site installation is simple, reducing construction difficulties and costs. In terms of long-term operation, its low energy consumption (the air compressor unit only needs to work intermittently to maintain pressure) and low maintenance cost further reduce the total life-cycle cost. For small and medium-sized water conservancy projects, ecological restoration projects, and urban landscape projects with limited budgets, PSG has obvious economic advantages.

5. Eco-Friendly and Little Impact on Aquatic Ecosystems

PSG avoids the permanent blocking of river channels. When deflated, the steel shield plate drops to the bottom of the channel, restoring the natural flow state of the river and facilitating the migration and reproduction of aquatic organisms. The smooth surface of the steel shield plate reduces water flow resistance and sediment accumulation, avoiding the destruction of the riverbed ecosystem caused by excessive scouring. In addition, the materials used (such as environmentally friendly synthetic rubber and corrosion-resistant steel) are non-toxic and pollution-free, which will not cause adverse effects on water quality and aquatic organisms. This makes PSG particularly suitable for ecological restoration projects and river regulation projects that emphasize environmental protection.

6. Safe and Reliable Operation

The PSG system is equipped with a complete pressure monitoring and fault alarm device, which can real-time monitor the air pressure of the rubber airbag and the operation status of the control system. Once an abnormal situation (such as air leakage, excessive pressure) occurs, the system can automatically trigger an alarm and take corresponding protective measures (such as automatic inflation or emergency deflation). The rubber airbag has good flexibility and can absorb the impact force of water flow and floating debris, reducing the risk of structural damage. Moreover, the independent operation design of multi-span PSG ensures that the failure of a single span will not affect the normal operation of other spans, improving the overall reliability of the water control system.
Pneumatic Shield Gate (PSG) is a composite water control structure composed of multiple functional components that work together to achieve water retention, flood discharge, and flexible water level adjustment. The core components are classified by their functional roles as follows:

1. Core Supporting Components

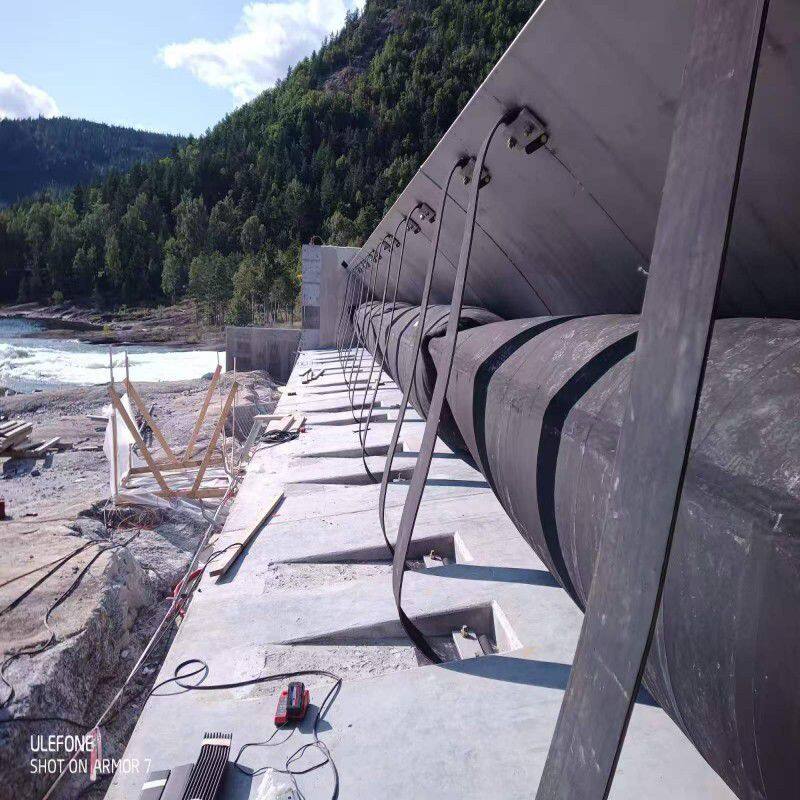

Rubber Airbag: As the core supporting element of the PSG, it is usually made of high-strength synthetic rubber (such as neoprene or EPDM) with fiber reinforcement layers inside to enhance tensile and pressure-bearing capacity. Its main function is to provide upward supporting force for the steel shield plate through inflation, and to drive the shield plate to descend by deflation. The airbag is designed with a sealed structure to ensure air tightness, and its shape and size are customized according to the span and height of the dam. It has the characteristics of good flexibility, corrosion resistance, and fatigue resistance, and can adapt to small deformations of the foundation.
Steel Shield Plate: It serves as the main water-retaining and load-bearing structure, usually made of carbon steel (Q235B, Q355B) or stainless steel with anti-corrosion coating (such as hot-dip galvanizing or epoxy resin coating) on the surface to resist water erosion and sediment scouring. The plate is designed as a continuous or segmented structure according to the dam span, and is connected with the rubber airbag through bolts or clamping devices. Its surface is smooth to reduce water flow resistance and sediment accumulation, and the edge is designed with reinforcing ribs to improve structural rigidity.

2. Inflation & Deflation Control System

Air Compressor Unit: The power source for inflating the rubber airbag, usually composed of a screw air compressor, air dryer, and pressure regulating valve. It is required to have stable air supply capacity, and the output pressure matches the working pressure of the airbag (generally 0.03–0.08MPa). The unit is equipped with automatic start-stop control to maintain the air pressure in the airbag within the set range, and has overload protection and fault alarm functions.
Inflation/Deflation Pipes & Valves: The pipeline system is responsible for connecting the air compressor unit and the rubber airbag, usually made of galvanized steel pipe or high-pressure rubber hose to ensure pressure resistance and corrosion resistance. The valve group includes solenoid valves, check valves, and emergency deflation valves: solenoid valves control the on-off of the inflation/deflation circuit; check valves prevent air backflow; emergency deflation valves can quickly release air in case of floods or faults to ensure the safety of the dam body.
Pressure Monitoring & Control Device: It mainly includes pressure sensors, transmitters, and a central control panel. The pressure sensor is installed on the rubber airbag or the inflation pipeline to real-time monitor the internal air pressure. The data is transmitted to the central control panel, which can automatically adjust the operation of the air compressor unit according to the preset pressure value. Some advanced systems are equipped with remote monitoring functions to realize unattended operation.

3. Sealing & Anti-Leakage System

Sealing Rubber Strip: It is installed at the contact positions between the steel shield plate and the guide rail, the airbag and the dam foundation, and between the segmented shield plates. It is made of wear-resistant and aging-resistant rubber material, with a special cross-sectional design (such as U-shape or V-shape) to ensure tight fitting under water pressure. The sealing strip is a key component to prevent water leakage, and its service life is closely related to the overall operation stability of the PSG.
Bottom Sealing Structure: It is located at the connection between the lower end of the rubber airbag and the dam foundation, usually composed of a steel pressing plate and a rubber sealing pad. It is designed to adapt to the uneven settlement of the foundation, ensuring effective sealing even when the foundation has small displacements, and preventing water from seeping into the airbag installation area.

4. Guiding & Fixing Components

Guide Rails: Installed on both sides of the river channel (or the abutment), made of steel. The steel shield plate is embedded in the guide rail groove, which guides the vertical movement of the shield plate during inflation and deflation, ensuring that the shield plate moves stably without deviation. The inner surface of the guide rail is smooth, and a lubricating layer is sometimes applied to reduce friction between the shield plate and the rail.
Anchor Bolts & Foundation Embedded Parts: Used to fix the guide rails, air compressor unit, and other components on the dam foundation. The embedded parts are pre-buried in the concrete foundation during construction, and the anchor bolts are used to connect the above-ground components with the embedded parts. They are required to have sufficient tensile and shear capacity to resist the lateral water pressure and the weight of the dam body, ensuring the overall stability of the structure.

5. Auxiliary Components

Anti-Scour Protection Plate: Installed at the upstream and downstream of the dam foundation, made of steel or reinforced concrete. Its function is to prevent the water flow from scouring the foundation soil around the dam body, especially during flood discharge, reducing the risk of foundation settlement or damage.
Maintenance Platform & Handrail: Set on the top of the dam or the side of the guide rail, providing a safe operation and maintenance channel for workers. It is usually made of steel grating, with anti-slip design, and is equipped with protective handrails to ensure the safety of maintenance personnel during inspection, repair, and replacement of components.
Lightning Protection & Anti-Corrosion Devices: Lightning protection devices (such as lightning rods) are installed on the top of the steel shield plate and the control cabinet to prevent lightning damage to electrical components. Anti-corrosion devices include sacrificial anodes (for underwater steel components) and anti-corrosion coatings, which extend the service life of the components in harsh environments such as humidity and seawater.
Structural Features & Working Principle: Adopts a single continuous steel shield plate combined with a rubber airbag structure, installed vertically across the river channel. No intermediate piers; the entire span is supported by the inflated airbag to retain water, and deflates quickly to release floods. Span range: 5–30m (common), maximum up to 50m with special structural design.
Application Scenarios: Medium and small rivers with narrow width (≤50m) and uniform cross-section; irrigation canals, urban rivers, and small reservoir spillways; areas with no strict requirements for navigation or large debris passage.
Core Advantages: Simple structure, low construction cost, and short construction period; no obstacles in the channel, minimal impact on water flow and sediment transport; easy operation and maintenance.

2. Multi-Span Continuous Pneumatic Shield Dam

Structural Features & Working Principle: Multiple single-span pneumatic shield dams connected in series along the river channel. Expansion joints with rubber sealing strips are set between adjacent spans to adapt to temperature changes and foundation settlement. Each span can be inflated/deflated independently or synchronously through a centralized control system.
Application Scenarios: Wide rivers (＞30m) or rivers with irregular cross-sections; large-scale flood control projects, river regulation projects, and coastal protection zones; projects requiring segmented water level control (e.g., upstream irrigation + downstream navigation; ecological water replenishment + flood discharge).
Core Advantages: Flexible combination of spans to match complex channel conditions; independent operation of each span improves system reliability (one span failure does not affect the normal operation of others); convenient for phased construction and later maintenance.

3. Step-Type Pneumatic Shield Dam

Structural Features & Working Principle: Multiple pneumatic shield dams arranged in steps along the longitudinal direction of the river (from upstream to downstream). Each dam forms a small water head; the total water head is the sum of the heads of individual steps. The crest of the downstream dam is lower than the toe of the upstream dam to ensure smooth water flow and reduce scouring.
Application Scenarios: Rivers with large natural drop (3–15m) for small hydropower generation projects; ecological restoration projects (to form cascading waterfalls, improve water oxygenation, and restore aquatic habitats); urban waterfront landscape projects (creating stepped water scenes).
Core Advantages: Converts large water drop into small steps, reducing water flow velocity and channel scouring; enhances ecological and landscape value while realizing water retention and power generation; stable operation, adaptable to large fluctuations in upstream water flow.气盾坝 (9)(1)

4. Zigzag Pneumatic Shield Dam

Structural Features & Working Principle: The dam body is arranged in a zigzag (broken line) shape along the river channel, adapting to the curved trajectory of the river. Each section of the dam body is connected by angle-adjustable joints with sealing structures. The steel shield plates and rubber airbags of each section are synchronized in inflation/deflation to ensure consistent water level control.
Application Scenarios: Curved rivers or rivers with significant direction changes; valleys with narrow and tortuous terrain, where straight-line arrangement requires large-scale excavation; river sections adjacent to important buildings (e.g., bridges, culverts) that need to avoid structural conflicts.
Core Advantages: Adapts to complex terrain without large-scale channel excavation, reducing construction difficulty and cost; the zigzag structure enhances the stability of the dam body against lateral water pressure; minimizes impact on surrounding existing structures.

5. Combined Type (Pneumatic Shield Dam + Sluice Gate)

Structural Features & Working Principle: Integrates pneumatic shield dam with traditional sluice gates (e.g., flap gates, radial gates) in the same channel. Pneumatic shield dam is used for daily water retention and flexible water level adjustment; sluice gates are used for large-flow flood discharge or emergency water release. Shared foundation and control system to realize coordinated operation.
Application Scenarios: Large rivers with large seasonal differences in water flow (e.g., rivers with heavy floods in summer and little water in winter); water conservancy projects that require both daily water supply/irrigation and large-flow flood control; navigation channels that need to ensure sufficient water depth during dry seasons and unobstructed navigation during flood seasons.
Core Advantages: Combines the flexibility of pneumatic shield dams and the large discharge capacity of sluice gates; improves the overall adaptability of the water control system to complex water flow conditions; reduces the design load of a single structure, improving operational safety.
Supplementary Notes: The selection of river channel forms for pneumatic dams mainly depends on factors such as river width, cross-sectional shape, natural drop, functional requirements (flood control, irrigation, power generation, landscape), and surrounding terrain conditions. For special complex scenarios, customized structural design can be carried out based on engineering needs.
Supplementary Notes: The selection of river channel forms for pneumatic dams mainly depends on factors such as river width, cross-sectional shape, natural drop, functional requirements (flood control, irrigation, power generation, landscape), and surrounding terrain conditions. For special complex scenarios, customized structural design can be carried out based on engineering needs.
